Shengda Smart Ultrasonic Water Meter Installation Case In Africa

Shengda Smart Ultrasonic Water Meter Installation Case in Africa

With the progress and development of society, the technology of smart water meters is constantly improving. In order to meet the higher demands of customers, Shengda Water Meter has developed and produced intelligent wireless remote ultrasonic water meters, including lorawan ultrasonic water meter, nb-iot ultrasonic water meter, Cat1 (4G) smart ultrasonic water meter, Mbus ultrasonic water meter, etc., which are exported to many different countries. Among them, there are some relatively large demands in Africa. Some customers have obtained satisfactory answers through testing our products and ordered many batches of ultrasonic water meters, which are installed in various fields such as home use, commercial use, and so on.

After installation, the ultrasonic water meter runs stably and is highly favored by customers.

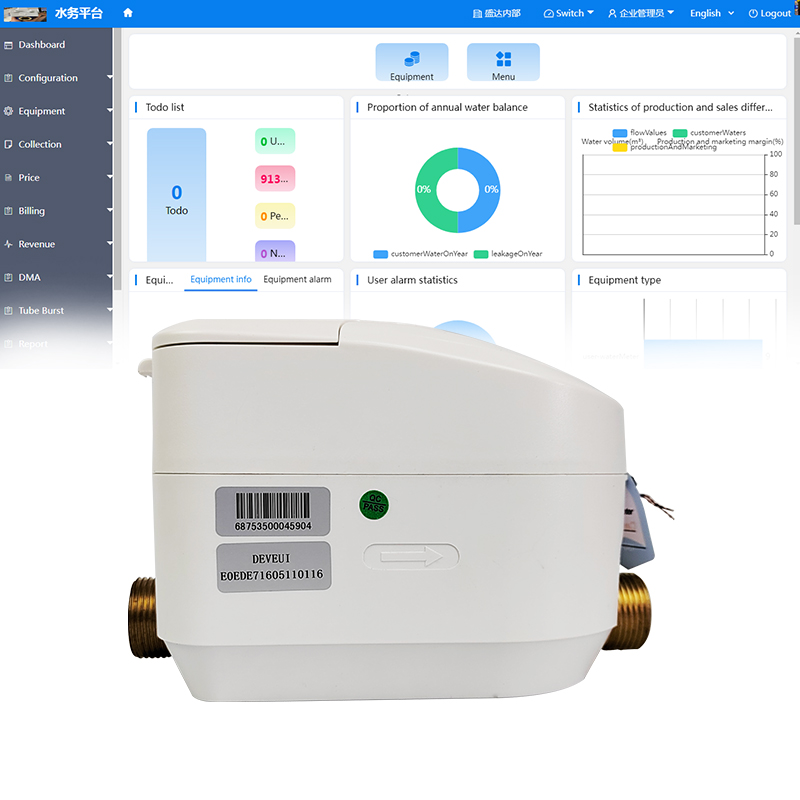

Here is a brief introduction to ultrasonic water meters:

Product features:

1) Measure cumulative flow volume and instantaneous flow rate,

2) Water metering data history storage locally,

3) The water meter measurement data and the remaining battery capacity are automatically uploaded to the server platform and displayed regularly.

4) Screen display battery quantity, water balance,etc.

5) Low battery capacity alarm.

Main parameters:

1), Size: DN15 to DN50

2), Standard is ISO4064, CE, MID

3), Accuracy is Class B(certified according to ISO 4064-1:2014 OIML R49-1:2013)

4), Meter body is brass, with a set of connectors, brass material

5), BSP thread connection from DN15 to DN50.

6), Head loss: ≤0.063MPa

7), Working pressure: PN16

8), Temperature: cold water, from 0.1 to 50 degrees centigrade
